Helical Spring Energized Seal
Helical Spring Energized Seal

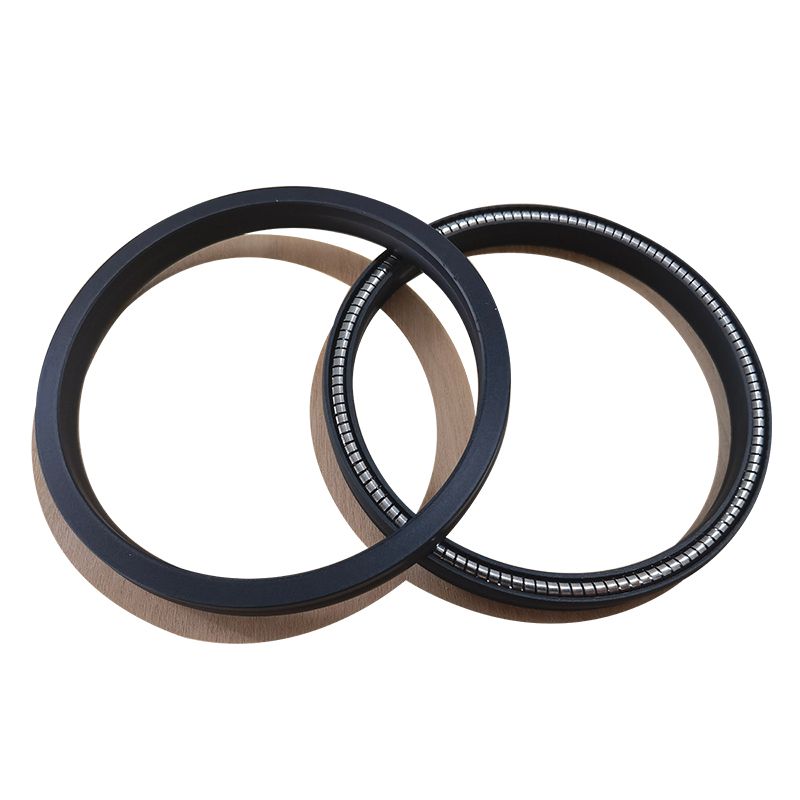

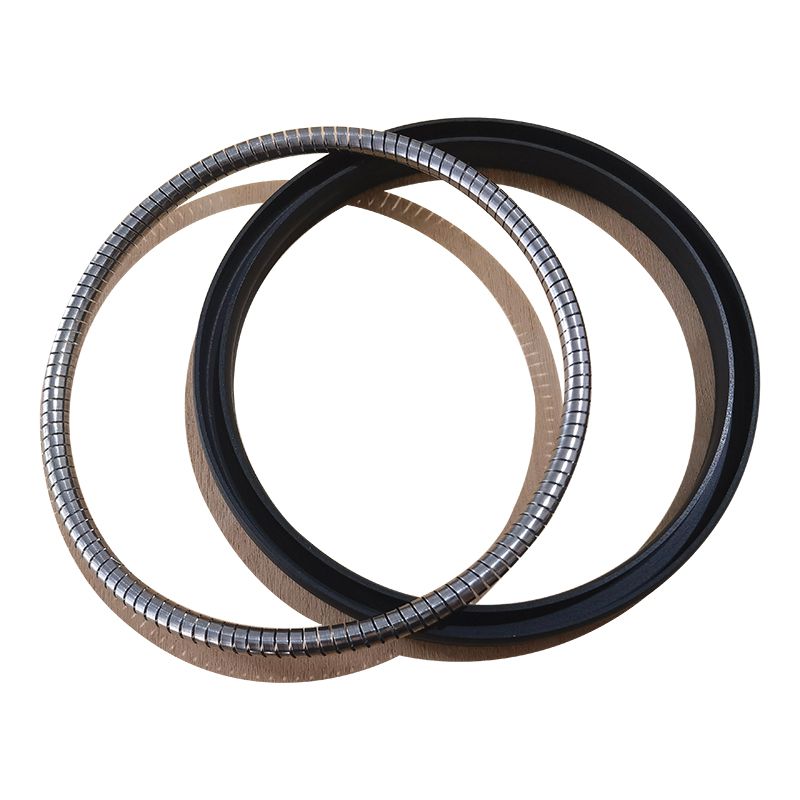

FJSEALS helical spring energized seal is a single-acting seal consisting of a wound corrosion resistant metal spring installed in a U-shaped jacket. The helical shape spring affords a relatively high load versus deflection range resulting in a seal product that provides very tight sealing. This makes it ideal in low pressure, even vacuum applications. As a highly loaded product, helical spring energized seal is ideally suitable when dynamics are very slow or static.
Max. dynamic load | 20Mpa |
Max. static load | 80Mpa |
Reciprocating motion | 5m/s |
Rotary motion | 0.1m/s |
Operating temperature | -200℃ +260℃ |
Note: Please consult us for all applications involving fluids, chemicals and gases sealing with parameters beyond the listed.
- High contact pressure
- Outstanding sealing performance for gas and fluid applications
- Large diameter components require no assembly tools
- Withstands rapid changes in temperature
- Exhibits good sealing ability even on imperfect surfaces
- Outstanding aging resistance
- Interchangeable with the O-rings and back-up rings combination

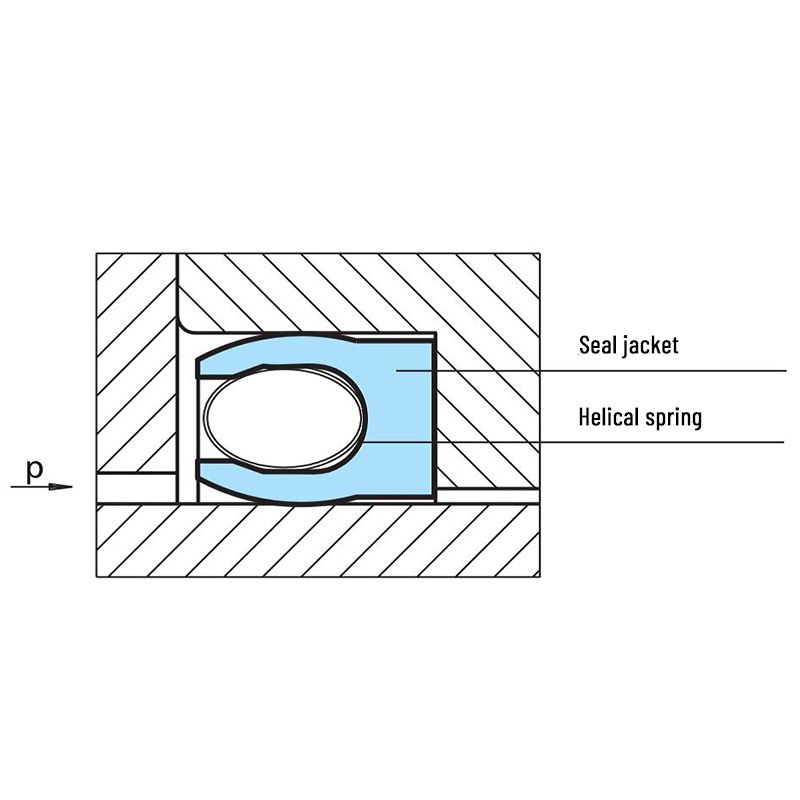

- Seal jacket: Polymer FJ-0234
- Spring: S (stainless steel)
- Rod seal: RS18
- Piston seal: PS18
Note: Please
- Low temperature sealing
- Low pressure sealing
- High pressure sealing
- Vacuum Pump energized seals & seal components
- Oil and gas industry
- Industrial equipment
- Aerospace & aircraft
- Helical spring seals are used in various pumps to ensure a seal between the impeller and shaft, preventing fluid leakage.
- Helical spring seals are used in various types of valves to control fluid flow and ensure valve sealing.
- Helical spring seals are used for sealing at pipeline connection points to prevent liquid or gas leakage.
- In marine engineering and shipbuilding, helical spring seals are used for waterproofing, wave resistance, and preventing seawater intrusion.
