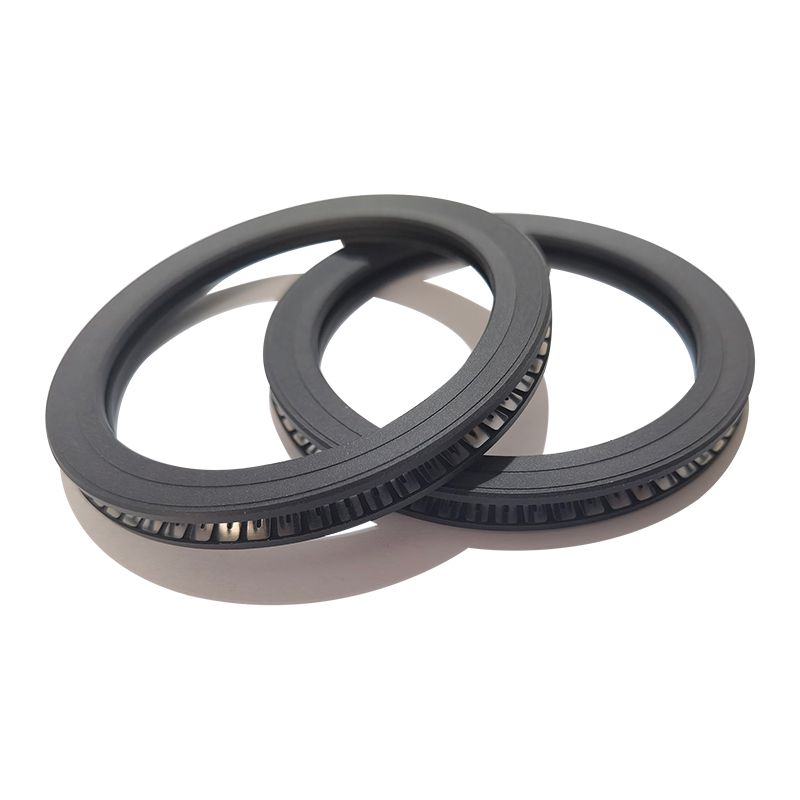

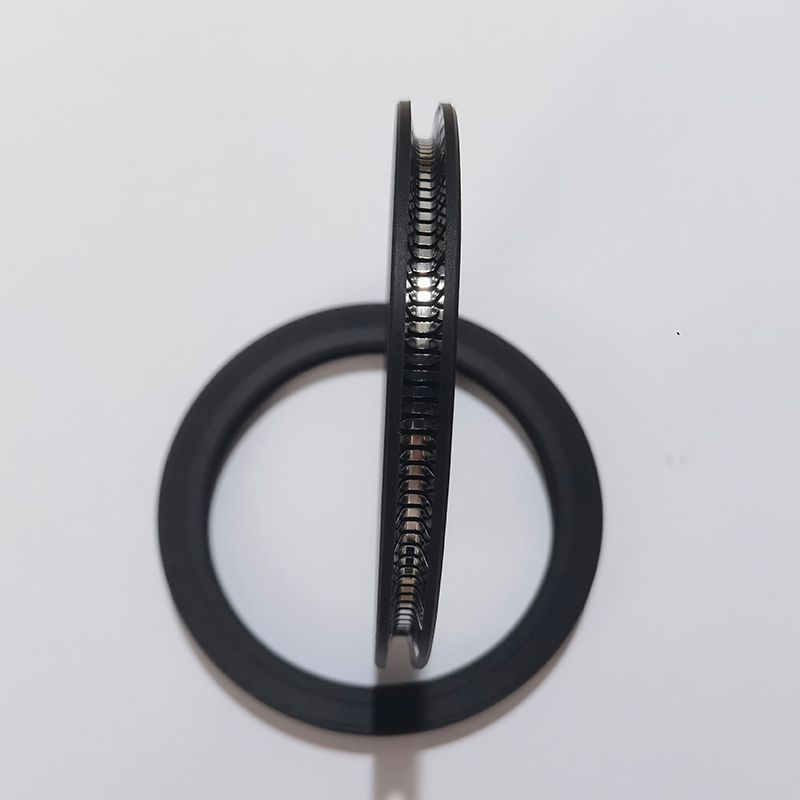

Spring Energized Face Seal
Spring Energized Face Seal
FJSEALS spring energized face seal is a standard seal used for flat applications. Face seals are designed for either internal or external pressure, but not both. It has similar seal performance with RS18 helical spring-energized seal. The high load helical spring makes it ideal for vacuum, gas and low temperature face seal.
Max. dynamic load | 40Mpa |
Max. static load | 80Mpa |
Speed | Static, slow rotary or reciprocating motion |
Operating temperature | -200℃ to +260℃ |
Media | Virtually all fluids, chemicals and gases |
Note: Please consult us for all applications unlisted.
- High spring pressure
- Outstanding sealing performance for gas and fluid applications
- Withstands rapid changes in temperature
- Good sealing ability even on imperfect surfaces
- Easy installation
- Unlimited shelf life

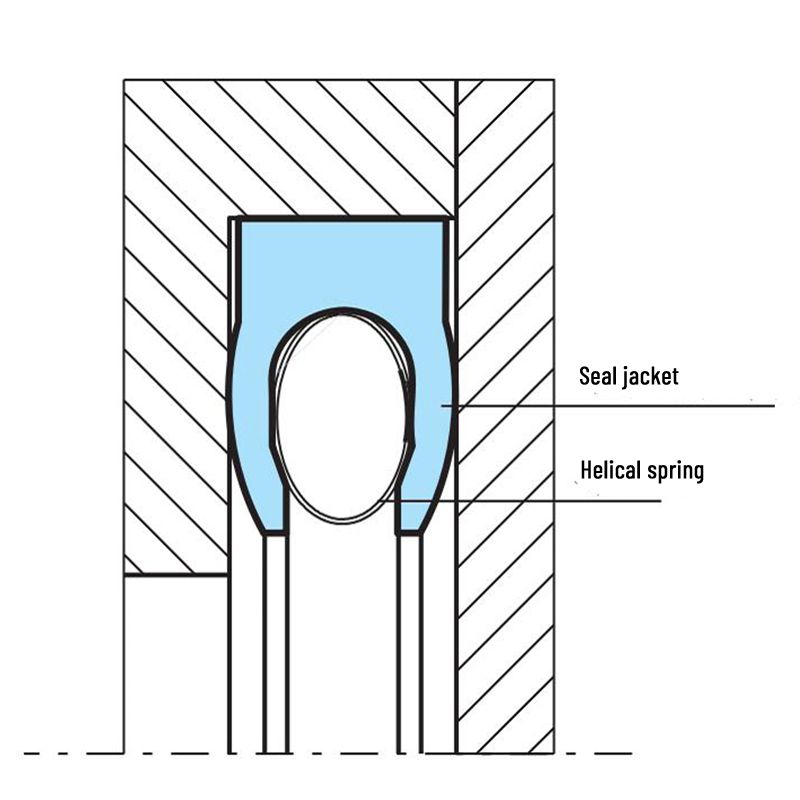

- Seal jacket: Polymer FJ-0234
- Spring: S (stainless steel)
- For external pressure: FL
- For internal pressure: FE
Note: Please
- Low temperature sealing
- Low pressure sealing
- Vacuum pump spring seals & seal components
- High pressure sealing
- Oil and gas industry
- Industrial equipment
- Aerospace & aircraft
- Chemical industry for corrosion resistant seal
